Ring Insert Tools

Features

Specification

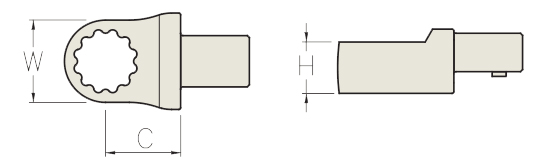

Model	Size	Tool Width	Tool Height	Tool C	Tool Weight
Model	mm	mm	mm	mm	g
KR-091207	7	13.1	8	17.5	37
KR-091208	8	13.1	8	17.5	40
KR-091210	10	17.6	8	17.5	44
KR-091211	11	19	8	17.5	41
KR-091212	12	20.3	12.2	17.5	49
KR-091213	13	21.1	12.2	17.5	56
KR-091214	14	23.4	12.2	17.5	52
KR-091215	15	24.4	12.2	17.5	52
KR-091216	16	26.4	13.2	17.5	54
KR-091217	17	27.4	13.2	17.5	59
KR-091218	18	28.9	13.2	17.5	56
KR-091219	19	31	13.2	17.5	65
KR-091221	21	33.4	14.7	17.5	71
KR-091222	22	35	14.7	17.5	74

Model	Size	Tool Width	Tool Height	Tool C	Tool Weight
Model	mm	mm	mm	mm	g
KR-141813	13	21	12	25	130
KR-141814	14	23	12	25	123
KR-141815	15	26	12	25	128
KR-141816	16	26	12	25	133
KR-141817	17	27.5	12.5	25	135
KR-141818	18	29.5	12.5	25	134
KR-141819	19	31	12.5	25	138
KR-141821	21	33	15	25	144
KR-141822	22	35	15	25	145
KR-141824	24	38	15	25	153
KR-141827	27	42	17.5	31	162
KR-141830	18	45.1	17.5	31	182
KR-141832	32	48	17.5	31	181
KO-141834	34	51	19	31	210
KO-141836	36	53	19	31	203
KO-141841	41	59.3	19	31	240
