Open Ended Insert Tools

Features

Specification

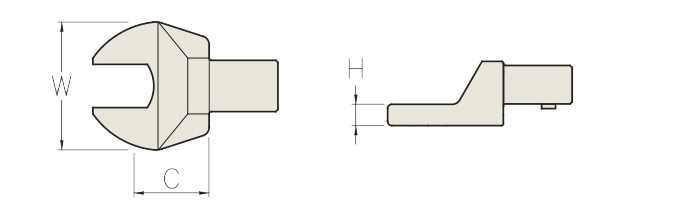

Model	Size	Tool Width	Tool Height	Tool C	Tool Weight
Model	mm	mm	mm	mm	g
KO-091207	7	20.7	5.7	17.5	40
KO-091208	8	22	5.7	17.5	39
KO-091209	9	23.5	5.7	17.5	38
KO-091210	10	24.8	5.7	17.5	42
KO-091211	11	26	5.7	17.5	41
KO-091212	12	27.5	5.7	17.5	43
KO-091213	13	28.8	5.7	17.5	48
KO-091214	14	31.5	7.7	20	52
KO-091215	15	33.5	7.7	20	51
KO-091216	16	36	7.7	20	58
KO-091217	17	37.7	7.7	20	60
KO-091218	18	39	7.7	20	71
KO-091219	19	41.6	7.7	20	74

Model	Size	Tool Width	Tool Height	Tool C	Tool Weight
Model	mm	mm	mm	mm	g
KO-141813	13	29.7	7	25	128
KO-141814	14	31.1	7	25	129
KO-141815	15	33.4	7	25	132
KO-141816	16	35.8	9	25	140
KO-141817	17	37	9	25	136
KO-141818	18	38.6	9	25	147
KO-141819	19	40.6	9	25	147
KO-141821	21	45.2	11	25	171
KO-141822	22	47.3	11	25	165
KO-141824	24	50.8	11	25	167
KO-141827	27	58.7	14	32.5	219
KO-141830	18	62.7	14	32.5	245
KO-141832	32	65.2	14	32.5	246
KO-141834	34	66.5	14	32.5	239
KO-141836	36	66.5	14	32.5	275
KO-141838	38	66.5	14	32.5	265
KO-141841	41	82.5	14	40	307
